Trailer

• Hebo Trailer model TH660Flat, registered in the EU
• Weight 3500kg
• 2 axles 2x1800kg
• Dimensions 660x244x62

Cladding, exterior and interior walls

• Ventilated facade made of 18mm sinusoidal sheet metal with mechanical fastening with screws and gasket, painted to color
• Sheet metal stratification from exterior to interior:
  Organic film, Primer paint, Anti-corrosive paint, Metal film, Steel core, Metal film, Anti-corrosive paint, Primer paint
• Color RAL 6011
• Rothoblaas Transpir 135 foil
• Rothoblaas Flexiband adhesive tape
• Spruce structure 45x95 mm, dried 12%
• Rothoblaas screws
• Rothoblaas Vapor IN 120 vapor barrier with SD 30
• Birch plywood 10mm, mounted with concealed mechanical fasteners

Insulation

• 10cm Rockwool basalt wool in walls
• 15cm Rockwool basalt wool in ceiling and floor

Window Frames and Access Door

• Wooden frames, 58 mm
• Roto NT hardware, 5-point locking
• F4-10-4lowE glazing
• Installation with Rothoblaas Plaster-In and Plaster-Out foils
• Metal sheet window sills, electrostatically painted

Sanitary Installations

• PPR pipes for hot and cold water
• Drainage with de-icing system
• Gree Bora A4 Silver R32 Inverter 12000 BTU air conditioning
• Eldom 50 l 2kw electric boiler
• Grohe shower fitting
• Grohe washbasin fitting
• WC Roca
• Floor-level shower with glass sliding door
• Moisture-resistant paint Benjamin Moore

Electrical Installation

• Electrical switchboard with arc fault protection switches
• Kinetic switches
• Schuco Livolo sockets
• Fire-resistant cables
• Sealing boxes
• Interior lighting

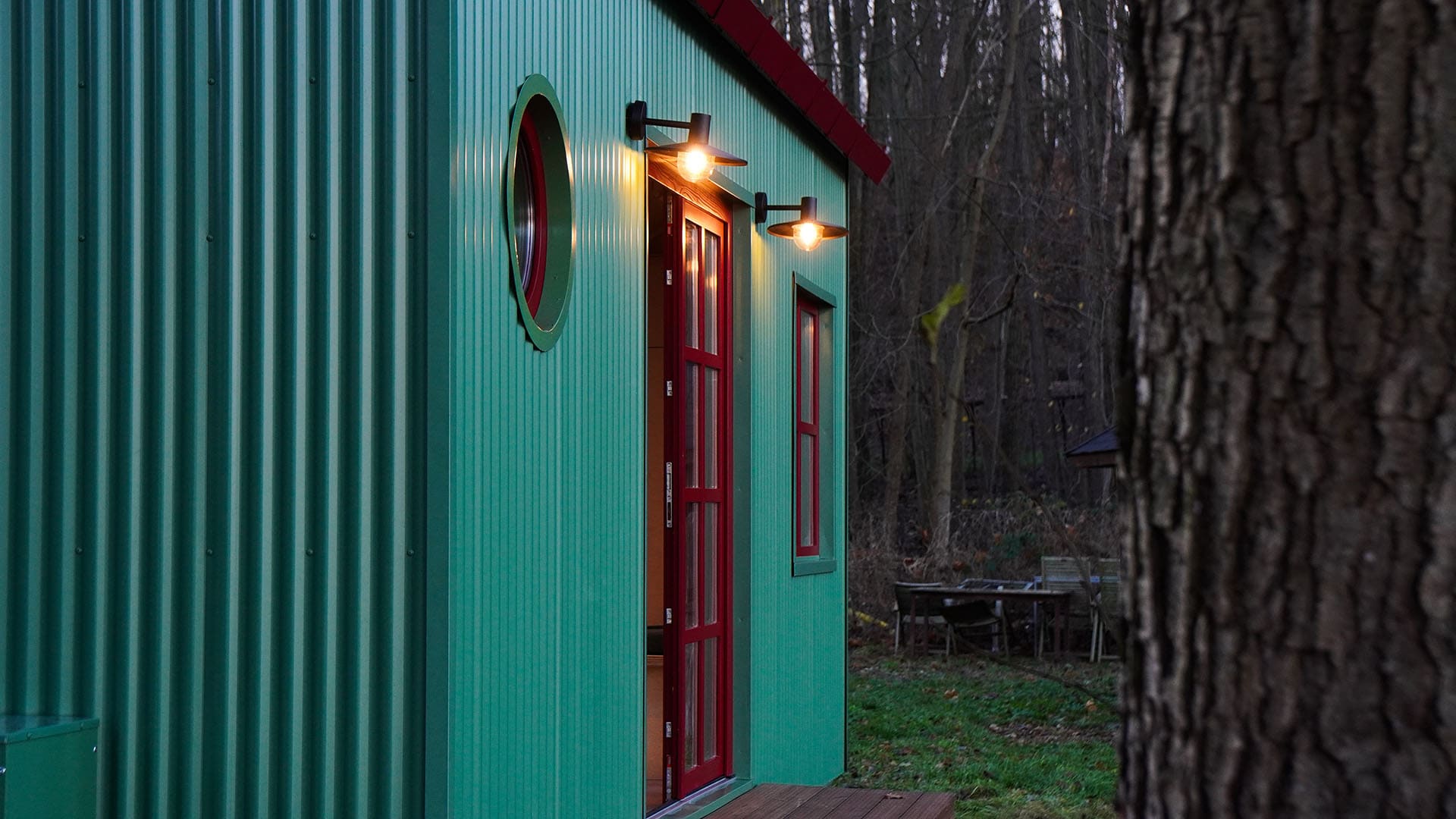

• Exterior lighting

Furniture

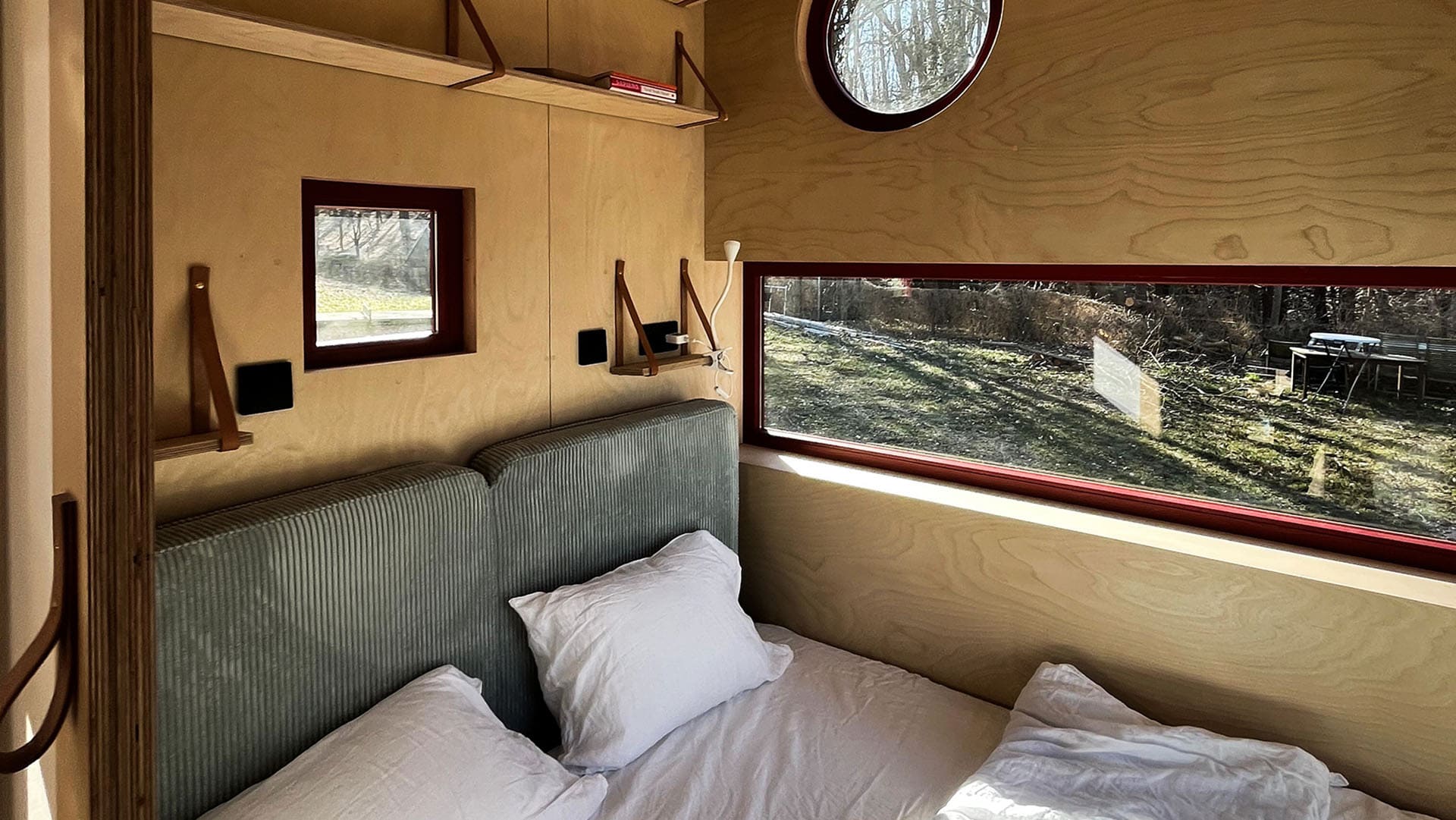

• Custom-made bed furniture from 18 mm birch plywood with storage
• Mattress 160x200
• Custom-made sofa
• Custom-made kitchen with 2-burner hob
• Built-in bathroom storage in the wall
